All-Flo G200 Pump 2″ ALL-PUR FDA (316 Stainless Steel) AODD – G Series
G200
Pump Size
2”
Air inlet
1/2” FNPT
Liquid Inlet
2 1/2”
Liquid discharge
2 1/2″
Connection type
TRI-CLAMP
Max flow rate
400 LPM
Max pressure
7 BAR (100 PSI)
Max diameter solids
14MM
Max suction lift capacity
3M DRY, 9M WET
Pump Details

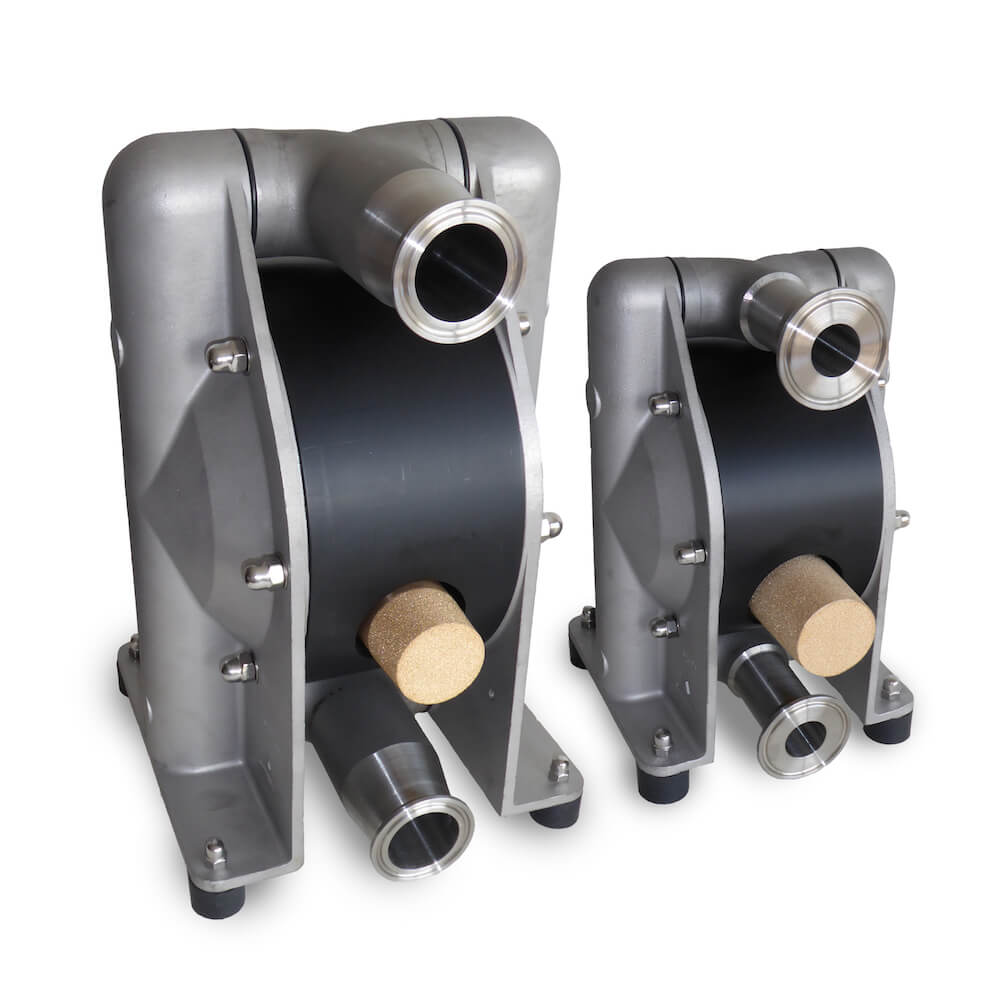

All-Flo’s All-Pur FDA (F-Series) and food grade (G-Series) Air operated double diaphragm (AODD) pumps are ideal for a range of food and beverage fluid transfer applications, including beer, wine, cider and spirits. The F-Series offers an easy to maintain design with passivated stainless steel wet end parts. The G-Series features a unique design for gentle handling of products, an integrated muffler and a compact form. Both the F-Series and G-Series Air operated double diaphragm (AODD) pumps are FDA, ATEX and CE Compliant.
CONSTRUCTION | |
---|---|
Wet End: | 316 Stainless Steel |
Air End: | Conductive Polyethylene |
Diaphragm: | FDA EPDM, Integral PTFE |
Balls: | FDA EPDM, PTFE |
Seats: | N/A (Part of Liquid Section) |
O-Rings: | FDA EPDM, PTFE |
Hardware: | Stainless Steel |
Muffler: | Metal |
