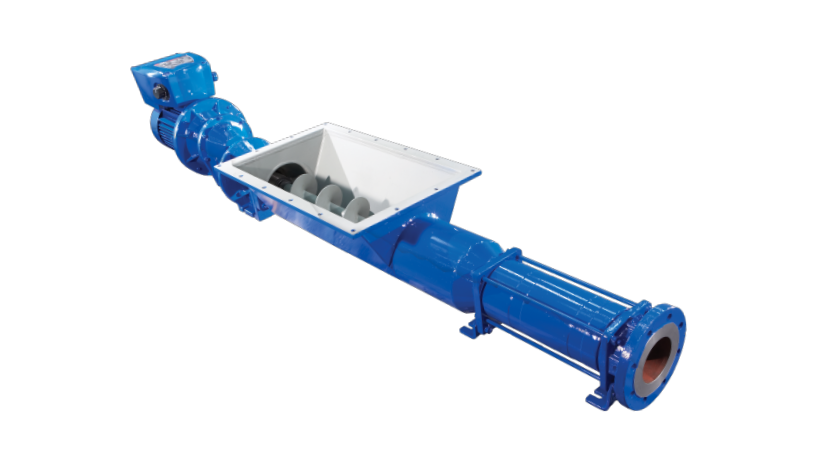

Widethroat Progressive Cavity Pumps

Mono Widethroat W range is specifically engineered to handle highly viscous materials, including sludge’s, slurries and thick non-flowing pastes and de-watered sludge cake with viscosities up to 1,000,000 cP. Mono W range widethroat transfer pump features an enlarged rectangular inlet equipped with a screw conveyor to facilitate the movement of the material into the pumping element. Additionally the inlet can be customized with large diameter augers, integral bridge breakers or both depending on the requirements.

Key Specifications

Flow: Up to 215 m³/h

Pressure: Up To 48 bar

Features and Benefits

Different design configurations to suit the application, dry solids approaching 40% can be handled when fitted with integral bridge breakers or large augers

Facilitates ease of maintenance through the simple design and use of a plug in shaft

Designed to run at relatively slow speeds to minimize damage to shear sensitive products

Can be supplied with a Muncher, horizontally mounted onto the hopper, to assist solids reduction prior to pumping

Pumps can be supplied to comply with the ATEX Directive 94/9/EC
