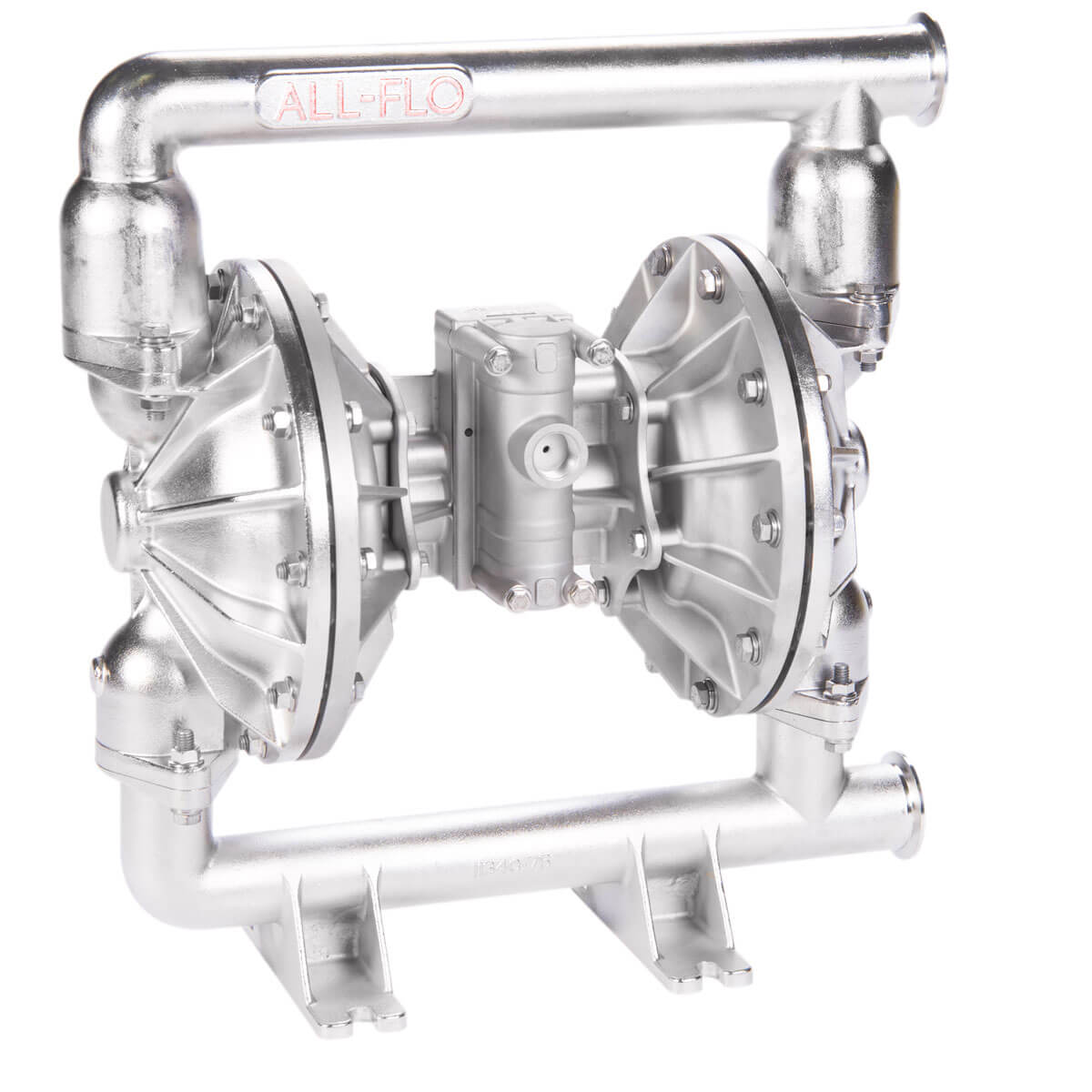

All-Flo F150 Pump 1 1/2″ ALL-PUR FDA (Passivated Stainless Steel) AODD – F Series
F150
Pump Size
1 1/2”
Air inlet
3/4” FNPT
Liquid Inlet
2”
Liquid discharge
2″
Connection type
TRI-CLAMP
Max flow rate
435LPM
Max pressure
8.2 BAR (120 PSI)
Max diameter solids
6.4MM
Max suction lift capacity
6.7M DRY, 9.4M WET
Pump Details
All-Flo’s All-Pur FDA (F-Series) and food grade (G-Series) Air operated double diaphragm (AODD) pumps are ideal for a range of food and beverage fluid transfer applications, including beer, wine, cider and spirits. The F-Series offers an easy to maintain design with passivated stainless steel wet end parts. The G-Series features a unique design for gentle handling of products, an integrated muffler and a compact form. Both the F-Series and G-Series Air operated double diaphragm (AODD) pumps are FDA, ATEX and CE Compliant.
CONSTRUCTION | |
---|---|
Wet End: | Passivated Stainless Steel |
Air End: | Aluminum, Stainless Steel |
Diaphragm: | Hytrel®, PTFE, Santoprene® |
Valve: | Buna-N, PTFE Santoprene® |
Seat: | Stainless Steel |
O-Rings: | Buna-N, EPDM, PTFE |
Hardware: | Stainless Steel |
Muffler: | Metal, Plastic |
