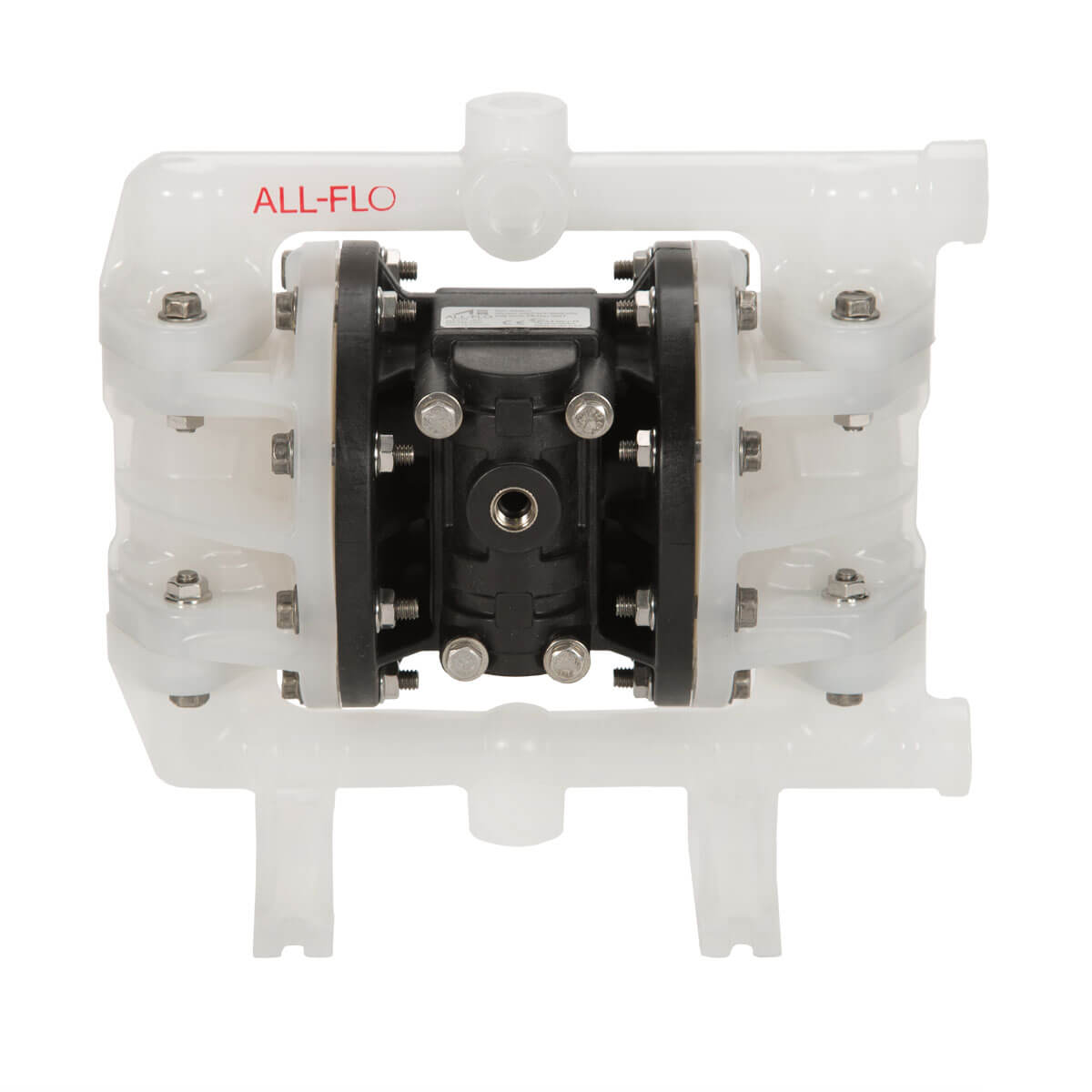

All-Flo S050 Pump 1/2″ MAX-PASS (Polypropylene/PVDF/Conductive Nylon) Plastic AODD – S Series
S050
Pump Size
1/2”
Air inlet
1/4” FNPT
Liquid Inlet
1/2”
Liquid discharge
1/2″
Connection type
FNPT/BSPT (THREADED)
Max flow rate
64.6 LPM
Max pressure
8.2 BAR (120 PSI)
Max diameter solids
9.5MM
Max suction lift capacity
6.1M DRY, 9.1M WET
Pump Details
All-Flo offers a comprehensive specialty range of air operated double diaphragm (AODD) pumps. Conductive plastic (D-Series), which is designed for hazardous applications that maybe located in non-conductive area. Max-pass (S-Series), which is engineered to handle larger solids and All-Flo’s legacy plastic pump range that has a proven track record for reliability. With a wide variety of sizes and material options available, All-Flo provides multiple solutions tailored to meet the specific requirements of your application.
CONSTRUCTION | |
---|---|
Wet End: | Conductive Nylon, Polypropylene, PVDF |
Air End: | Glass Filled Polypropylene |
Diaphragm: | Geolast®, PTFE, Santoprene® |
Valve: | Buna-N, EPDM, FKM |
Seat: | Conductive Nylon, Polypropylene, PVDF |
O-Rings: | Buna-N, EPDM, PTFE, FKM |
Hardware: | PTFE Coated Stainless Steel, Stainless Steel |
Muffler: | Metal, Plastic |
