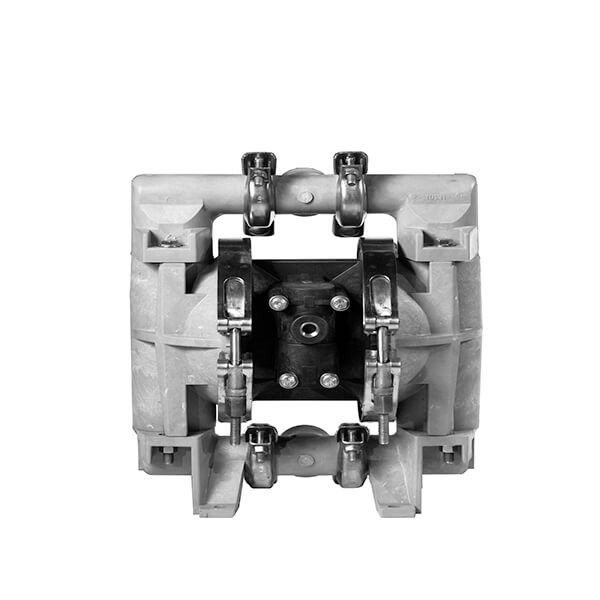

All-Flo C100 Pump 1″ LEGACY Plastic (Polypropylene/PVDF) AODD
C100
Pump Size
1”
Air inlet
1/4” FNPT
Liquid Inlet
1”
Liquid discharge
1″
Connection type
FNPT/BSPT (THREADED)
Max flow rate
152LPM
Max pressure
6.8 BAR (100 PSI)
Max diameter solids
6.4MM
Max suction lift capacity
4.6M DRY, 7.9M WET
Pump Details
All-Flo offers a comprehensive specialty range of air operated double diaphragm (AODD) pumps. Conductive plastic (D-Series), which is designed for hazardous applications that maybe located in non-conductive area. Max-pass (S-Series), which is engineered to handle larger solids and All-Flo’s legacy plastic pump range that has a proven track record for reliability. With a wide variety of sizes and material options available, All-Flo provides multiple solutions tailored to meet the specific requirements of your application.
| CONSTRUCTION | |
|---|---|
| Wet End: | Polypropylene, PVDF |
| Air End: | Glass filled Polypropylene |
| Diaphragm: | Geolast®, PTFE, Santoprene®, FKM |
| Valve: | Buna-N, Geolast®, PTFE, Santoprene®, FKM |
| Seat: | Polypropylene, PVDF |
| Hardware: | Stainless Steel |
