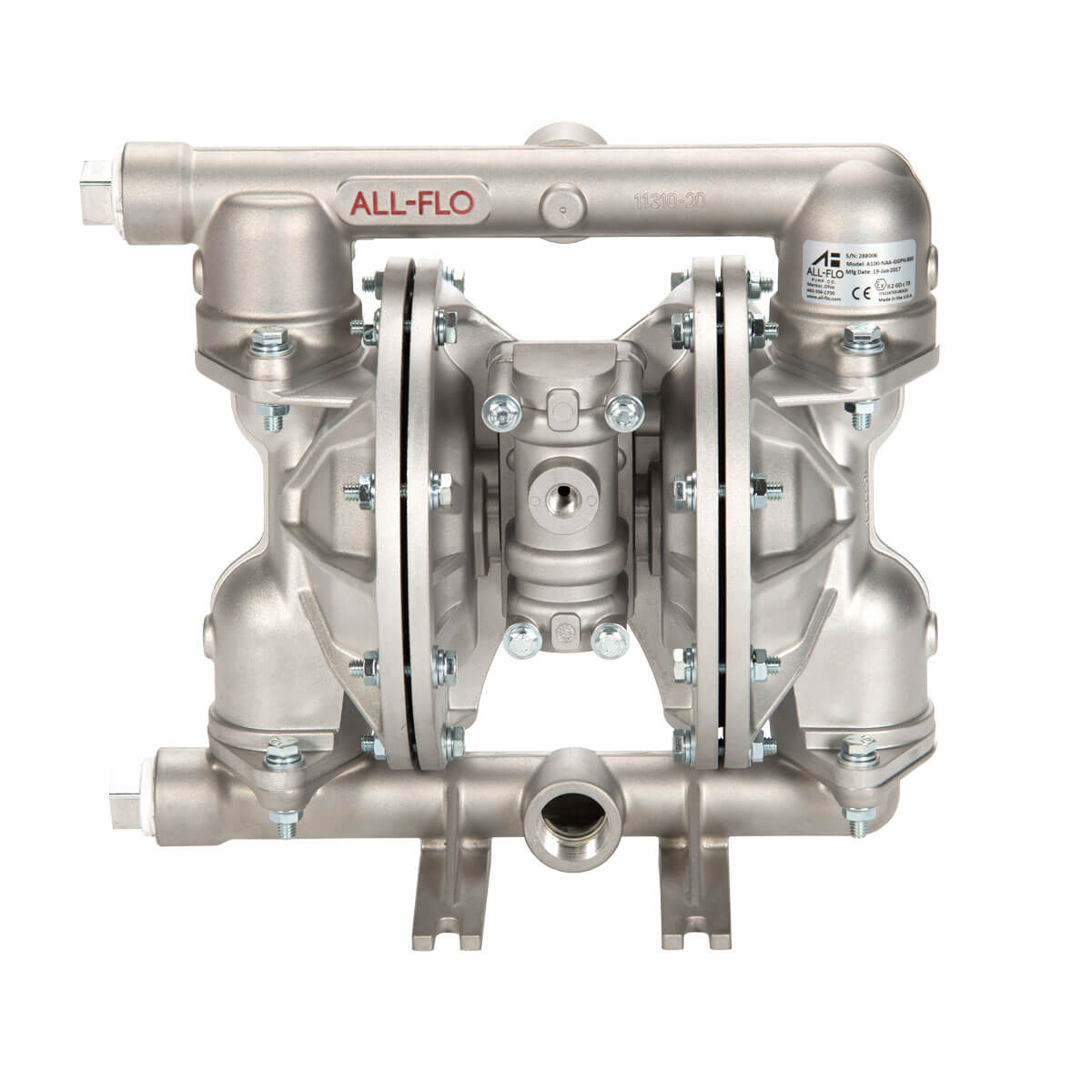

All-Flo S100 Pump 1″ MAX-PASS (Aluminium/Stainless Steel) Metal AODD – S Series
S100
Pump Size
1”
Air inlet
1/2” FNPT
Liquid Inlet
1”
Liquid discharge
1″
Connection type
FNPT/BSPT (THREADED)
Max flow rate
174 LPM
Max pressure
8.2 BAR (120 PSI)
Max diameter solids
19MM
Max suction lift capacity
5.5M DRY, 8.4M WET
Pump Details
All-Flo offers a comprehensive specialty range of air operated double diaphragm (AODD) pumps. Conductive plastic (D-Series), which is designed for hazardous applications that maybe located in non-conductive area. Max-pass (S-Series), which is engineered to handle larger solids and All-Flo’s legacy plastic pump range that has a proven track record for reliability. With a wide variety of sizes and material options available, All-Flo provides multiple solutions tailored to meet the specific requirements of your application.
CONSTRUCTION | |
---|---|
Wet End: | Aluminum, Stainless Steel |
Air End: | Glass Filled Polypropylene |
Diaphragm: | Geolast®, PTFE with Santoprene® Backup, Santoprene®, FKM |
Valve: | Buna-N, EPDM, FKM |
Seat: | Aluminum, Stainless Steel |
O-Rings: | Buna-N, EPDM, PTFE, FKM |
Hardware: | Stainless Steel |
Muffler: | Metal, Plastic |
