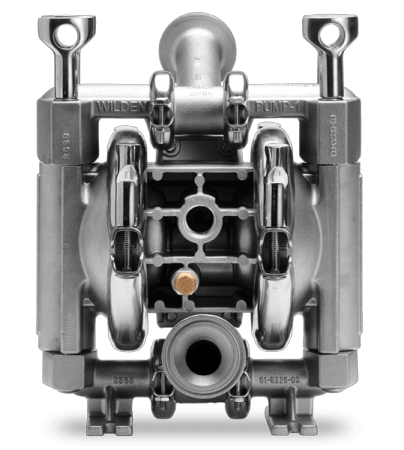

Wilden P1 Pump 13 mm (1/2″) Pro-Flo® Saniflo™ FDA Series Clamped Metal AODD
P1
Pump Size
1/2”
Air inlet
1/4” FNPT
Liquid Inlet
1”
Liquid discharge
1”
Connection type
Tri-Clamp
Max suction lift capacity
Rubber – 5.8 m (19.0′) Dry, 9.5 m (31.0′) Wet
TPE – 5.2 m (17.0′) Dry, 9.5 m (31.0′) Wet
PTFE – 4.9 m (16.0′) Dry, 9.5 m (31.0′) Wet
Max flow rate
Rubber – 58.7 lpm (15.5 gpm)
TPE – 58.3 lpm (15.4 gpm)
PTFE – 54.4 lpm (14.4 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
1.59mm
Displacement per stroke
Rubber – 0.11 L (0.029 gal)
TPE – 0.11 L (0.029 gal)
PTFE – 0.09 L (0.025 gal)
Pump Details
The Wilden Saniflo FDA series pumps cater to standard food processing needs that don’t necessitate the hygienic series (HS) or clean-in-place (CIP) features. Ideal for the sanitary environments handling high acid, high sugar and high fat substances, these pumps offer straightforward installation and a sturdy build. Compliant with FDA, CE,EC 1935/2004 and ATEX standards, they ensure reliability and regulatory adherence
- Tri-clamp connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Greater flow – more gallons pumped per SCFM
- Two air distribution system options:
- Pro-Flo® SHIFT: multiple material options, high efficiency, high flow
- Pro-Flo: durable, economical, one material option
