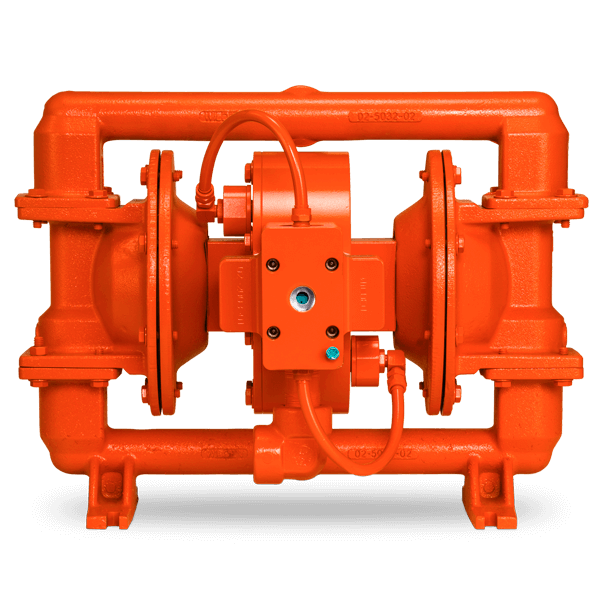

Wilden H220 Pump 25 mm (1″) High-Pressure Threaded Bolted Metal AODD
H220
Pump Size
1”

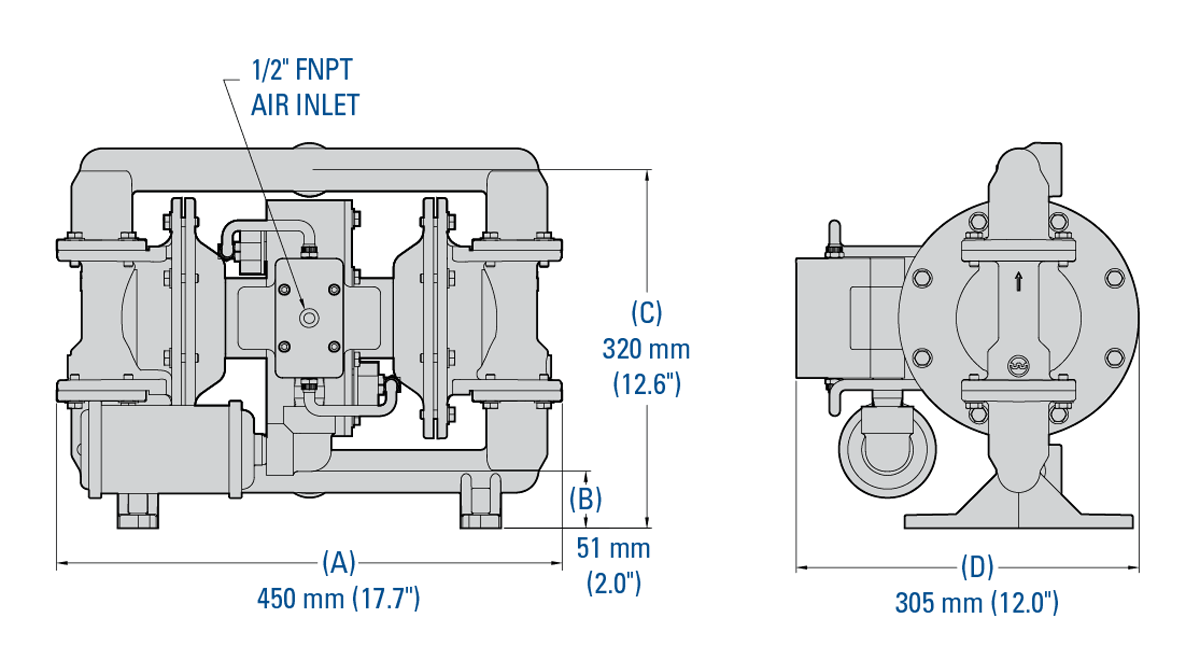

Air inlet
1/2” FNPT
Liquid Inlet
1”
Liquid discharge
1”
Connection type
NPT/BSPT (Threaded)
Max suction lift capacity
EZ-Install TPE – 8 m (9.1′) Dry, 9.0 m (29.5′) Wet
Full-Stroke PTFE – 6.1 m (19.9′) Dry, 8.3 m (27.2′) Wet

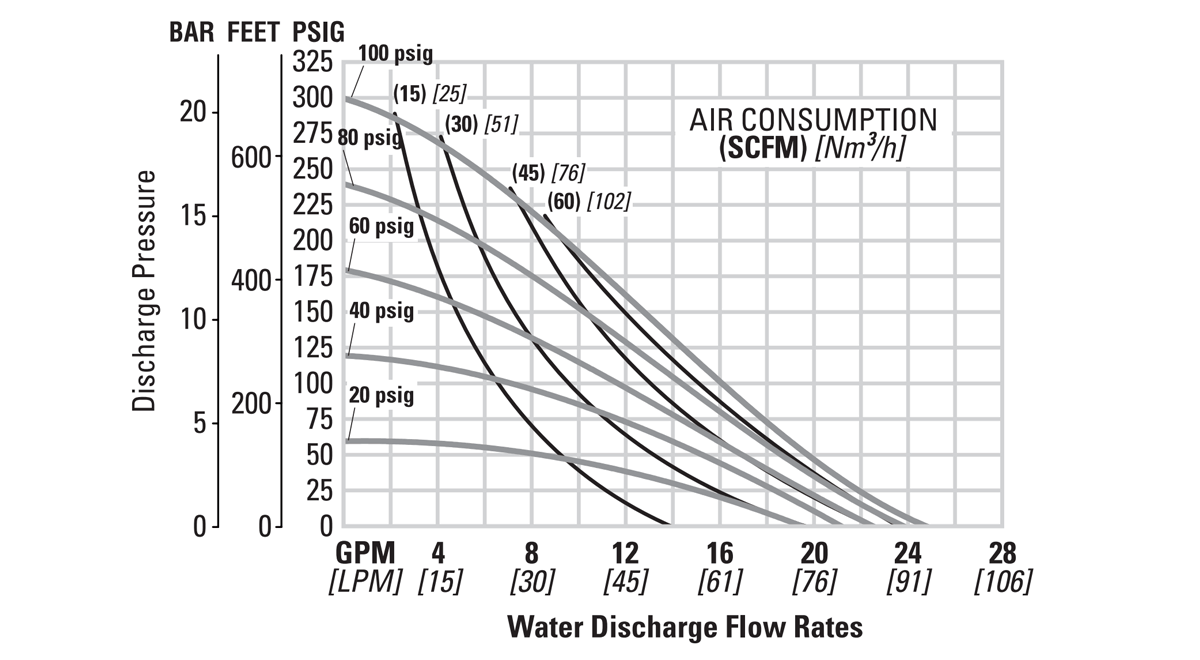

Max flow rate
EZ-Install TPE – 94 lpm (25 gpm)
Full-Stroke PTFE – 597 lpm (158 gpm)
Max pressure
6.9 bar (100 psi)
Max discharge pressure
20.7 bar (300 psi)
Max diameter solids
6.4 mm
Displacement per stroke
TPE – 0.189 L (0.05 gal)
Full-Stroke PTFE – 0.189 L (0.05 gal)
Pump Details
The Wilden High Pressure series air operated double diaphragm pump (AODD) metal pump features a specialised air distribution system (ADS) incorporating a double acting power piston and duplex technology. This System enhances fluid discharge pressure, allowing Wilden High pressure pumps to consistently deliver pressures of up to 20.7 bar (300 psi). Ideal for a diverse range of high pressure applications, such as filtration, chemical sludge transfers and handling viscous solid laden slurries. The Wilden High pressure series ensure reliable performance under the most demanding conditions.
- Simplex and Duplex technology available (depending on size)
- Industry’s only 3″ high-pressure pump
- Builds up to 300 psi discharge pressure
- Built-in internal pressure amplifier with limited external piping for more robust design
