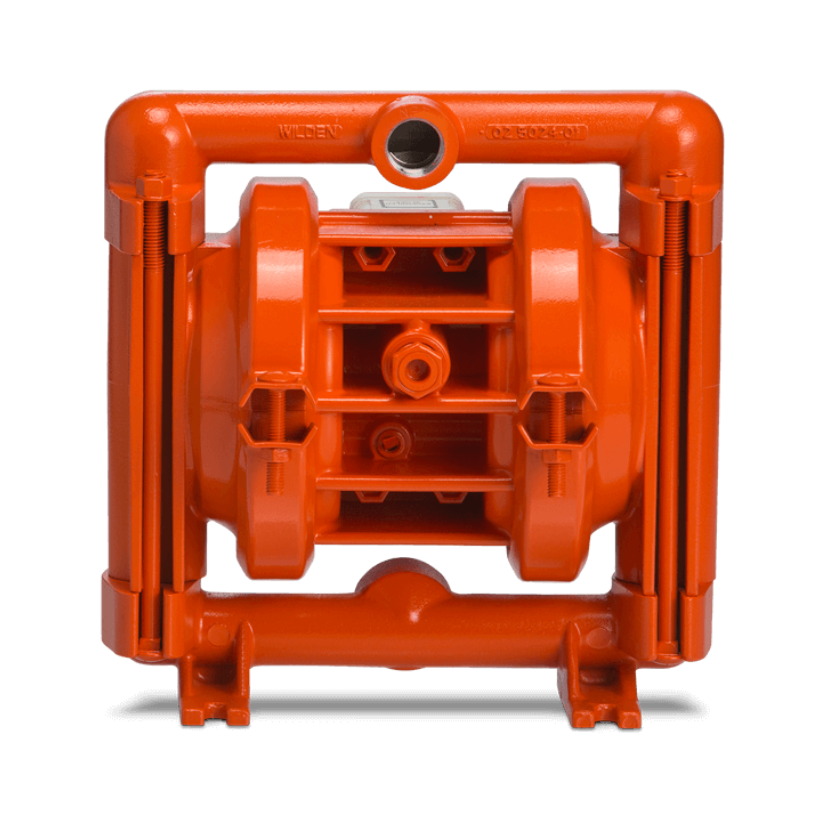

Wilden P2 Pump 25 mm (1″) Pro-Flo® Series Clamped Metal AODD
P2
Pump Size
1”
Air inlet
1/4” FNPT
Liquid Inlet
1”
Liquid discharge
3/4”
Connection type
NPT/BSPT (Threaded)
Max suction lift capacity
Rubber – 5.2 m (17.0′) Dry, 9.0 m (29.5′) Wet, TPE – 7.6 m (25.0′) Dry, 9.0 m (29.5′) Wet, Full-Stroke PTFE – 4.7 m (15.3′) Dry, 9.0 m (29.5′) Wet, Reduced-Stroke PTFE – 2.8 m (9.1′) Dry, 9.0 m (29.5′) Wet
Max flow rate
Rubber – 172 lpm (45.5 gpm), TPE – 171 lpm (45.2 gpm), Full-Stroke PTFE – 167 lpm (44.1 gpm), Reduced-Stroke PTFE – 155 lpm (41 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
3.2mm
Displacement per stroke
Rubber – 0.3 L (0.08 gal), TPE – 0.3 L (0.08 gal), Full-Stroke PTFE – 0.3 L (0.08 gal), Reduced-Stroke PTFE – 0.3 L (0.08 gal)
Pump Details
The Wilden pro-Flo series has been a trusted and reliable choice for over 20 years. It excels as an industrial AODD pump, offering superior performance and durability. With a wide range of size and material options, the Wilden Pro-Flo series consistently delivers the results you need, even in the most challenging applications.
Designed specifically for industrial use, the Wilden pro-flo series is perfect for chemical or oil applications. Its innovative air distribution system simplifies operation and reduces complexity with only three moving parts. You can expect efficient and straightforward performance from the Wilden pro-flo series and any repair that are required are quick and easy. Featuring a plastic centre block and lube free operation, this pump provides flexibility and reliability for your specific need. Trust the Wilden pro-flo series deliver consistent and dependable performance every time.
Features and Benefits
- Proven design for more than 20 years
- Ultra reliable
- Has only three moving parts, meaning less downtime and simplified maintenance
- Features plug-and-play operation
- Mechanically actuated, no electronic parts, submersible, no additional configuration or complicated curves.
