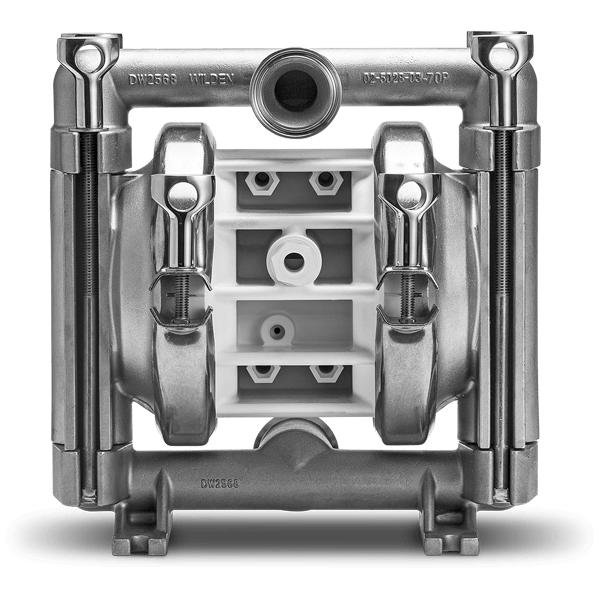

Wilden P2 Pump 25 mm (1″) Pro-Flo®Saniflo™ FDA Series Clamped Metal AODD
P2
Pump Size
1”
Air inlet
1/4” FNPT
Liquid Inlet
1 1/2”
Liquid discharge
1 1/2”
Connection type
Tri-Clamp
Max suction lift capacity
Rubber – 5.2 m (17.0′) Dry, 9.0 m (29.5′) Wet
TPE – 7.6 m (25.0′) Dry, 9.0 m (29.5′) Wet
Full-Stroke PTFE – 4.7 m (15.3′) Dry, 9.0 m (29.5′) Wet)
Reduced-Stroke PTFE – 2.8 m (9.1′) Dry, 9.0 m (29.5′) Wet

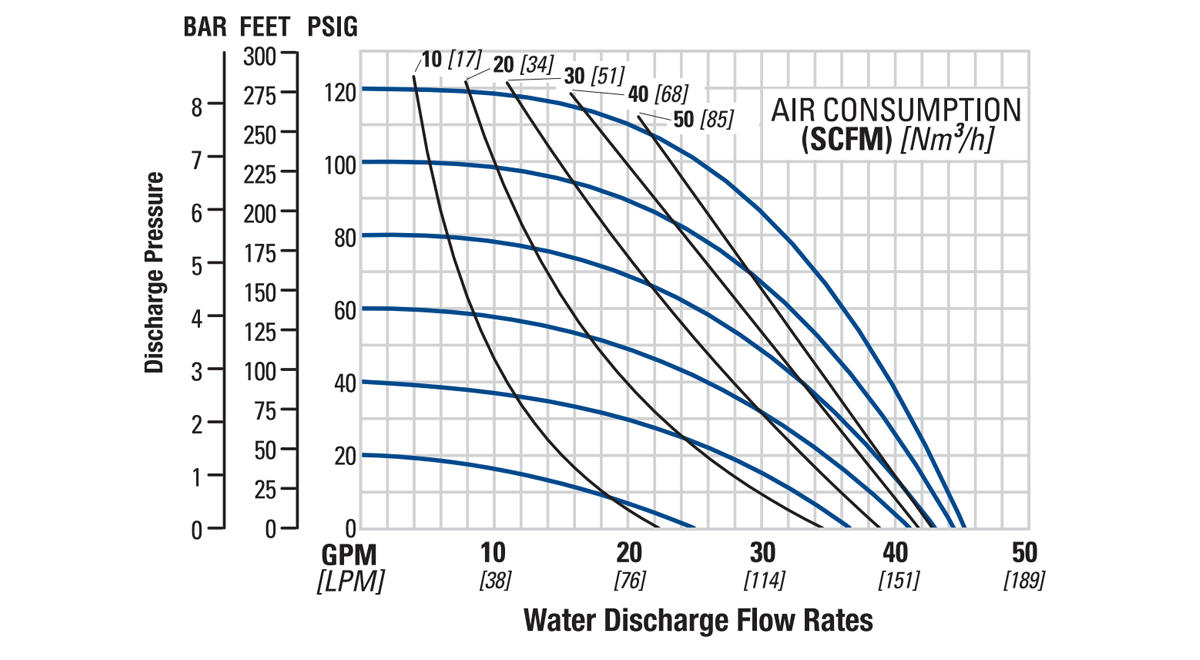

Max flow rate
Rubber – 172 lpm (45.5 gpm)
TPE – 171 lpm (45.2 gpm)
Full-Stroke PTFE – 167 lpm (44.1 gpm)
Reduced-Stroke PTFE – 155 lpm (41 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
3.2mm
Displacement per stroke
Rubber – 0.3 L (0.08 gal)
TPE – 0.3 L (0.08 gal)
Full-Stroke PTFE – 0.3 L (0.08 gal)
Reduced-Stroke PTFE – 0.3 L (0.08 gal)
Pump Details
The Wilden Saniflo FDA series pumps cater to standard food processing needs that don’t necessitate the hygienic series (HS) or clean-in-place (CIP) features. Ideal for the sanitary environments handling high acid, high sugar and high fat substances, these pumps offer straightforward installation and a sturdy build. Compliant with FDA, CE,EC 1935/2004 and ATEX standards, they ensure reliability and regulatory adherence
- Tri-clamp connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Greater flow – more gallons pumped per SCFM
- Two air distribution system options:
- Pro-Flo® SHIFT: multiple material options, high efficiency, high flow
- Pro-Flo: durable, economical, one material option
