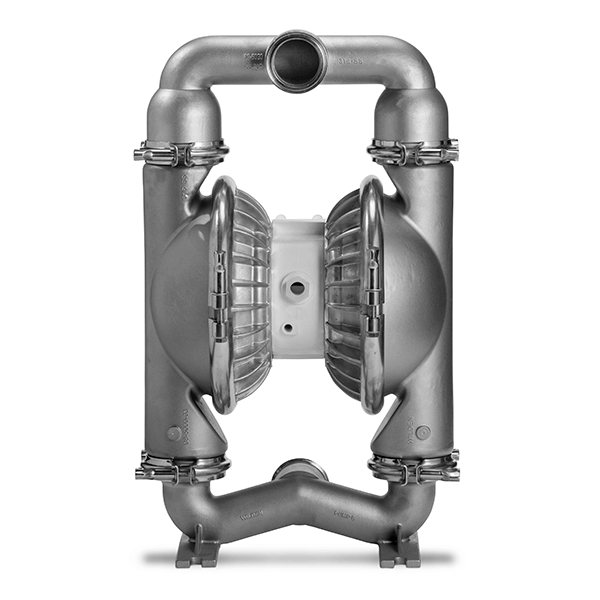

Wilden P8 Pump 51 mm (2″) Pro-Flo® Saniflo™ FDA Series Clamped Metal AODD
P8
Pump Size
2”
Air inlet
1/2” FNPT
Liquid Inlet
2 1/2”
Liquid discharge
2 1/2”
Connection type
Tri-Clamp
Max suction lift capacity
Rubber – 6.9 m (22.7′) Dry, 8.6 m (28.4′) Wet
TPE – 6.7 m (22.1′) Dry, 8.6 m (28.4′) Wet
Full-Stroke PTFE – 6.7 m (22.1′) Dry, 9.0 m (29.5′) Wet
Reduced-Stroke PTFE – 4.6 m (15.0′) Dry, 9.5 m (31.0′) Wet
Ultra-Flex™ – 4.9 m (16.0′) Dry, 8.8 m (29.0′) Wet
Max flow rate
Rubber – 623 lpm (165 gpm)
TPE – 630 lpm (166 gpm)
Full-Stroke PTFE – 618 lpm (163 gpm)
Reduced-Stroke PTFE – 496 lpm (131 gpm)
Ultra-Flex™ – 526 lpm (139 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
6.4mm
Displacement per stroke
Rubber – 2.6 L (0.70 gal)
TPE – 2.8 L (0.75 gal)
Full-Stroke PTFE – 2.6 L (0.70 gal)
Reduced-Stroke PTFE – 1.67 L (0.44 gal)
Ultra-Flex™ – 2.12 L (0.56 gal)
Pump Details
The Wilden Saniflo FDA series pumps cater to standard food processing needs that don’t necessitate the hygienic series (HS) or clean-in-place (CIP) features. Ideal for the sanitary environments handling high acid, high sugar and high fat substances, these pumps offer straightforward installation and a sturdy build. Compliant with FDA, CE,EC 1935/2004 and ATEX standards, they ensure reliability and regulatory adherence
- Tri-clamp connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Greater flow – more gallons pumped per SCFM
- Two air distribution system options:
- Pro-Flo® SHIFT: multiple material options, high efficiency, high flow
- Pro-Flo: durable, economical, one material option
