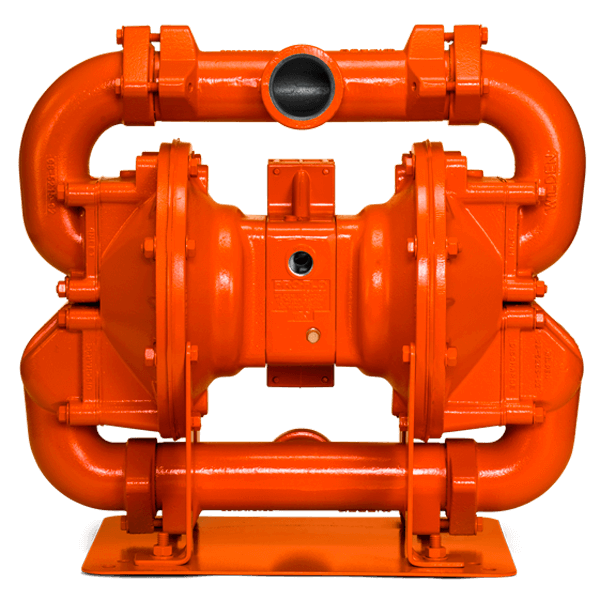

Wilden PS810 Pump 51 mm (2″) Pro-Flo® SHIFT Brahma™ Bolted Metal AODD

PS810

Pump Size
2”

Air inlet
3/4” FNPT

Liquid Inlet
2”

Liquid discharge
2”

Connection type
NPT/BSPT (Threaded)

Max suction lift capacity
7.4 m (23.3′) Dry, 9.0 m (29.5′) Wet

Max flow rate
640 lpm (169 gpm)

Max pressure
8.6 bar pressure (125 psi)

Max diameter solids
51mm

Displacement per stroke
1.8 L (0.475 gal)

Pump Details

The Renowned Wilden Brahama Series air operated double diaphragm (AODD) pumps excel in securely and efficinetly transferring solid-laden slurries. Distinguished by its distinctive top inlet and bottom discharge configuration, the Wilden Brahama Series incorporates flap valves, facilitating the smooth passage of sizeable solids. This design effectively mitigates the risks of product entrapment and sediment settling, particularly beneficial for intermittent duty applications.

The Wilden Brahama offers generous clearance and flow through design, these pumps boast an impressive capacity for accommodating large solid while safeguarding against clogging. The bolted construction ensures exceptional containment, enabling the pump to handle compressible solids up to 76mm (3″) in size.

Flap valve design for large-solids passage
Top inlet, bottom discharge for easy transfer of sediment and solid-laden fluids
Powered by Pro-Flo® SHIFT or Turbo-Flo™ air distribution systems (ADS)
