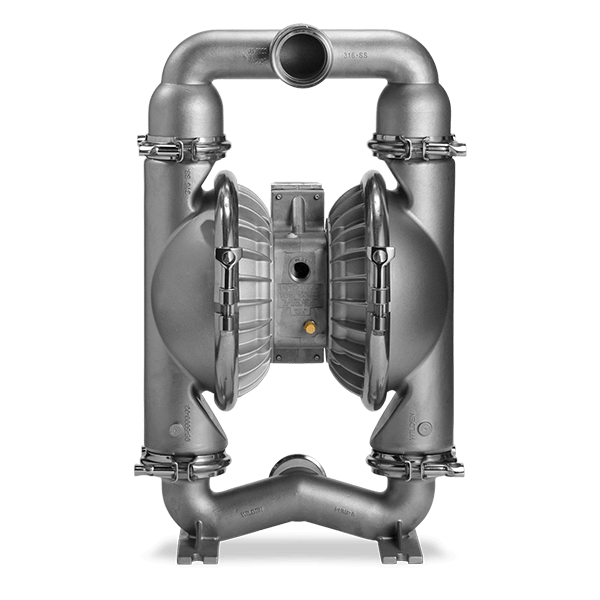

Wilden PS8 Pump 51 mm (2″) Pro-Flo® SHIFT Saniflo™ FDA Series Clamped Metal AODD
PS8
Pump Size
2”

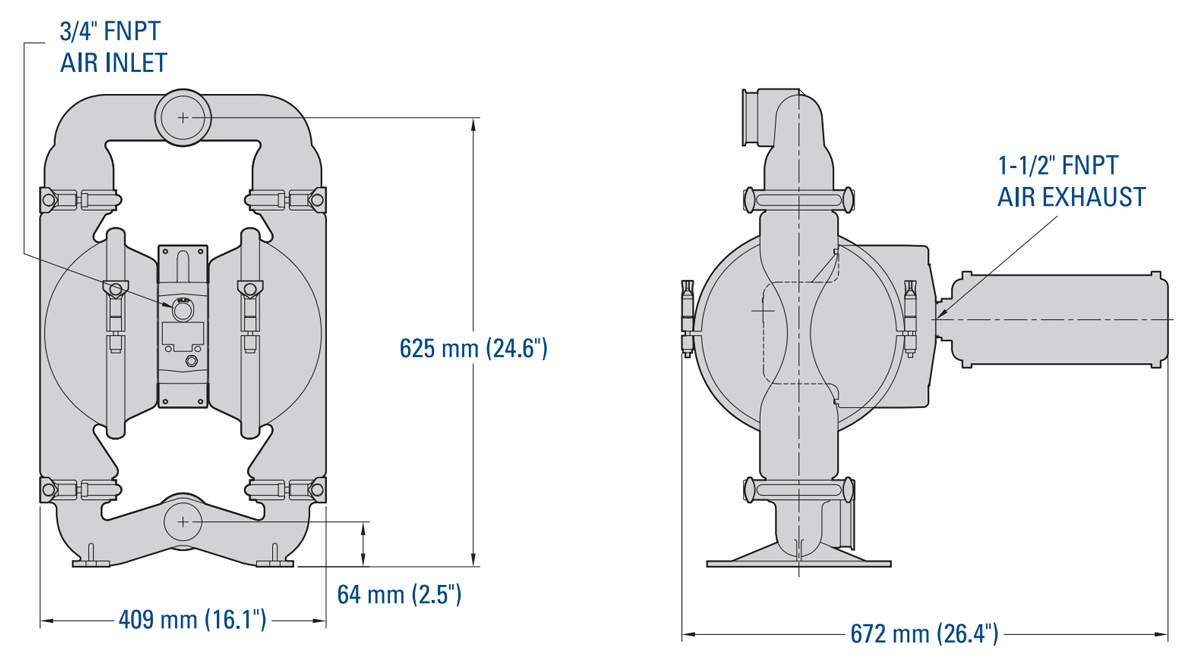

Air inlet
3/4” FNPT
Liquid Inlet
2 1/2”
Liquid discharge
2 1/2”
Connection type
Tri-Clamp
Max suction lift capacity
Rubber – 7.2 m (23.8′) Dry, 9.0 m (29.5′) Wet
EZ-Install TPE – 6.9 m (22.7′) Dry, 9.0 m (29.5′) Wet
Full-Stroke PTFE – 6.3 m (20.7′) Dry, 8.6 m (28.4′) Wet

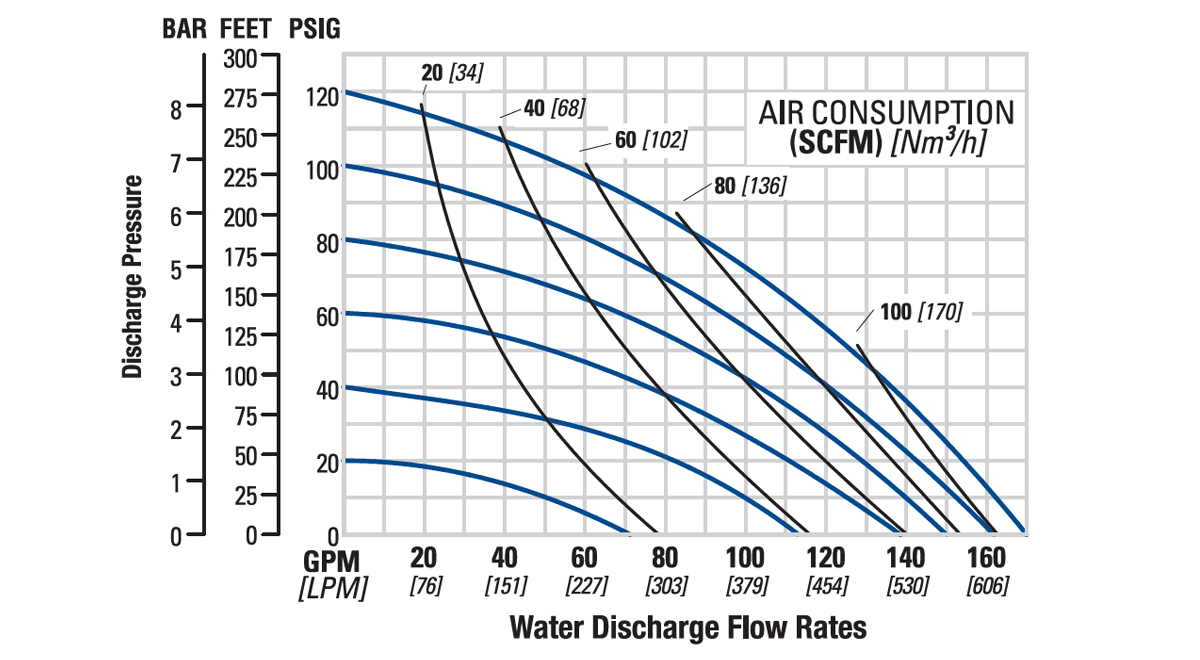

Max flow rate
Rubber – 700 lpm (185 gpm)
EZ-Install TPE – 719 lpm (190 gpm)
Full-Stroke PTFE – 723 lpm (191 gpm)
Max pressure
8.6 bar pressure (125 psi)
Max diameter solids
6.4mm
Displacement per stroke
Rubber – 2.6 L (0.69 gal)
EZ-Install TPE – 2.6 L (0.69 gal)
Full-Stroke PTFE – 2.4 L (0.64 gal)
Pump Details
The Wilden Saniflo FDA series pumps cater to standard food processing needs that don’t necessitate the hygienic series (HS) or clean-in-place (CIP) features. Ideal for the sanitary environments handling high acid, high sugar and high fat substances, these pumps offer straightforward installation and a sturdy build. Compliant with FDA, CE,EC 1935/2004 and ATEX standards, they ensure reliability and regulatory adherence
- Tri-clamp connections with wingnut clamped design
- Quick breakdown/reassembly for cleaning
- Greater flow – more gallons pumped per SCFM
- Two air distribution system options:
- Pro-Flo® SHIFT: multiple material options, high efficiency, high flow
- Pro-Flo: durable, economical, one material option
