Wilden P1500 Pump 76 mm (3″) Pro-Flo® Series Bolted Plastic AODD
P1500
Pump Size
3”

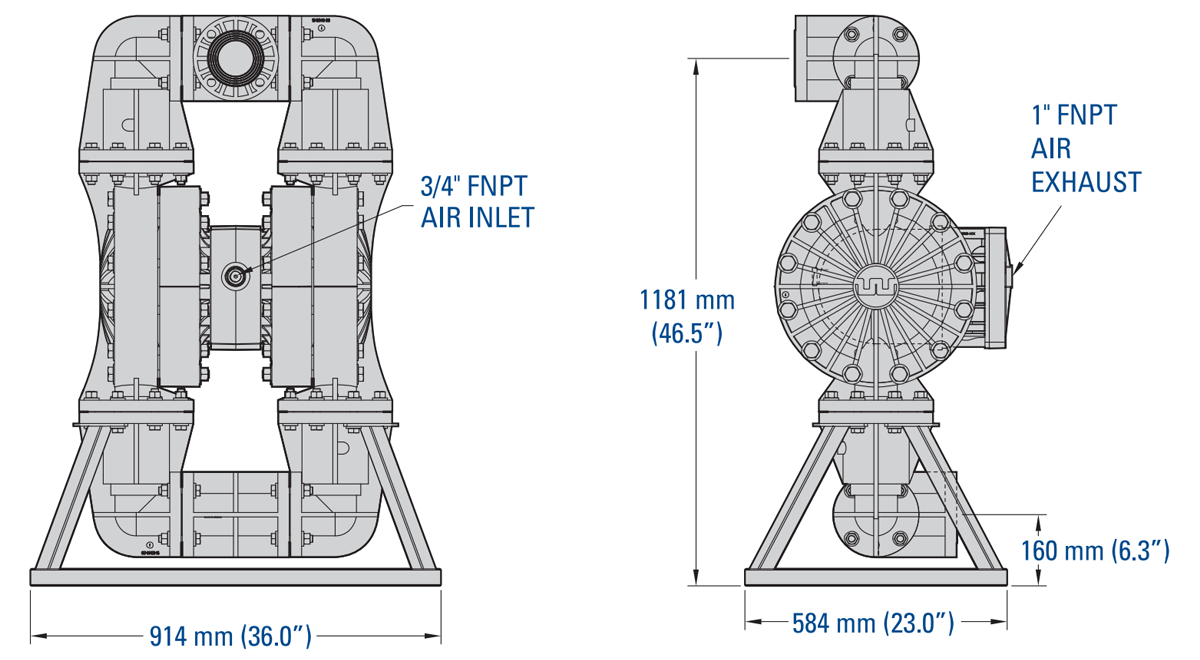

Air inlet
3/4” FNPT
Liquid Inlet
3”
Liquid discharge
3”
Connection type
DIN/ANSI (Flanged)
Max suction lift capacity
Full-Stroke PTFE – 5.5 m (18.2′) Dry, 8.6 m (28.4′) Wet, Reduced-Stroke PTFE – 3.63 m (12′) Dry, 8.6 m (28.4′) Wet

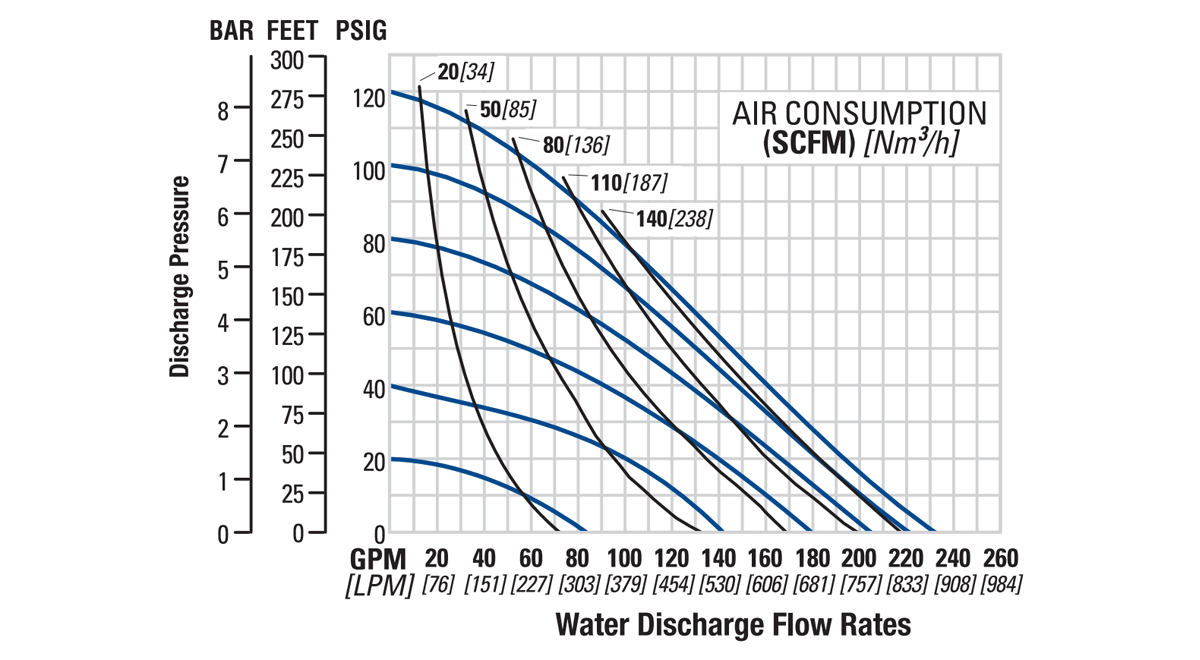

Max flow rate
Full-Stroke PTFE – 878 lpm (232 gpm), Reduced-Stroke PTFE – 784 lpm (207 gpm)
Max pressure
6.9 bar (100 psi) for polypropylene pumps, 8.6 bar (125 psi) for PVDF pumps
Max diameter solids
12.7mm
Displacement per stroke
Full-Stroke PTFE – 5.8 L (1.52 gal), Reduced-Stroke PTFE – 3.75 L (0.99 gal)
Pump Details
The Wilden pro-Flo series has been a trusted and reliable choice for over 20 years. It excels as an industrial AODD pump, offering superior performance and durability. With a wide range of size and material options, the Wilden Pro-Flo series consistently delivers the results you need, even in the most challenging applications.
Designed specifically for industrial use, the Wilden pro-flo series is perfect for chemical or oil applications. Its innovative air distribution system simplifies operation and reduces complexity with only three moving parts. You can expect efficient and straightforward performance from the Wilden pro-flo series and any repair that are required are quick and easy. Featuring a plastic centre block and lube free operation, this pump provides flexibility and reliability for your specific need. Trust the Wilden pro-flo series deliver consistent and dependable performance every time.
Features and Benefits
- Proven design for more than 20 years
- Ultra reliable
- Has only three moving parts, meaning less downtime and simplified maintenance
- Features plug-and-play operation
- Mechanically actuated, no electronic parts, submersible, no additional configuration or complicated curves.
